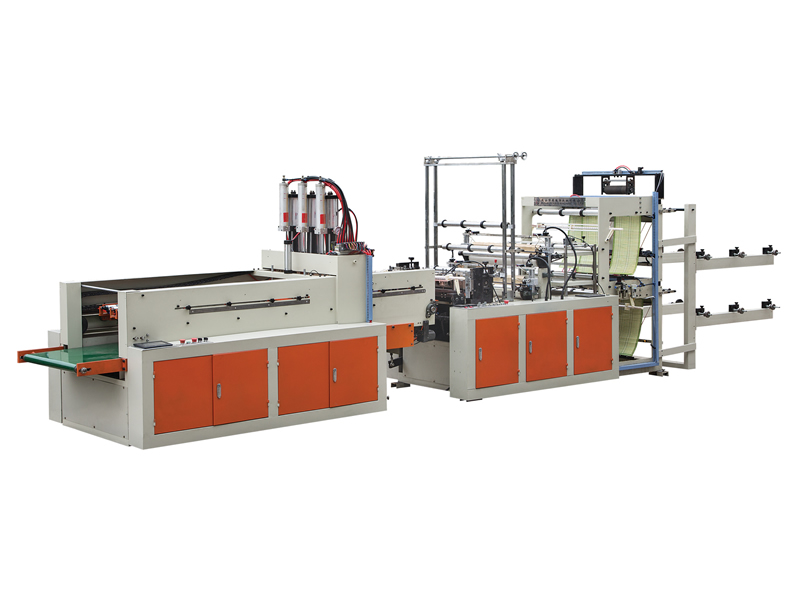

Automatic Double-Layer Six-Line T-Shirt Bag Making Machine

Double-layer, Six-line, Bottom Sealing Bag-making Machine has such functions as photoelectric automatic tracking, microcomputer length setting, high limit stopping, automatic counting, automatic alarm on reaching the set value, and high compensation accuracy. With characteristics such as neat bags, little error, and high automation of the whole machine, it is an ideal equipment for producing blank bags, color bags, flat bags, vest bags, etc., and other various plastic soft packaging bags.

Inquire Now NEXT PRODUCT

Performance and Features

Fuselage structural design is streamlined.

No material, blocking bags automatically shut down.

Microcomputer control, stepper motor prop material (optional servo motor control system).

The temperature error is small, bag length can be adjusted freely.

Photoelectric tracking, stopping automatically when the label is lost.

Feeding, back cover, cutting, notching, conveying all in one time.

High degree of automation, good economic returns.

Use:

This machine is suitable for white bags, color bags, flat bags, vest bags, etc.

Main Technical Parameters

Model	FR-DFR-800M	FR-DFR-900M	FR-DFR-1000M	FR-DFR-1100M
Max. Width	200mm*6	240mm*6	280mm*6	310mm*6
Max. length	600mm	600mm	600mm	600mm
Photocell	1	1	1	1
Cutting Thickness	0.009-0.025mm	0.009-0.025mm	0.009-0.025mm	0.009-0.025mm
Bag Output	10-120 Piece/minute*2	10-120 Piece/minute*2	10-120 Piece/minute*2	10-120 Piece/minute*2
Main Power	1.5kw	1.5kw	1.5kw	1.5kw
Feeding Motor	1.5kw	1.5kw	1.5kw	1.5kw
Power supply	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%
Weight	1200kg	1200kg	1300kg	1300kg
Overall Dimensions	7000×1400×1800（mm）	7000×1500×1800（mm）	7000×1600×1800（mm）	7000×1700×1800（mm）
