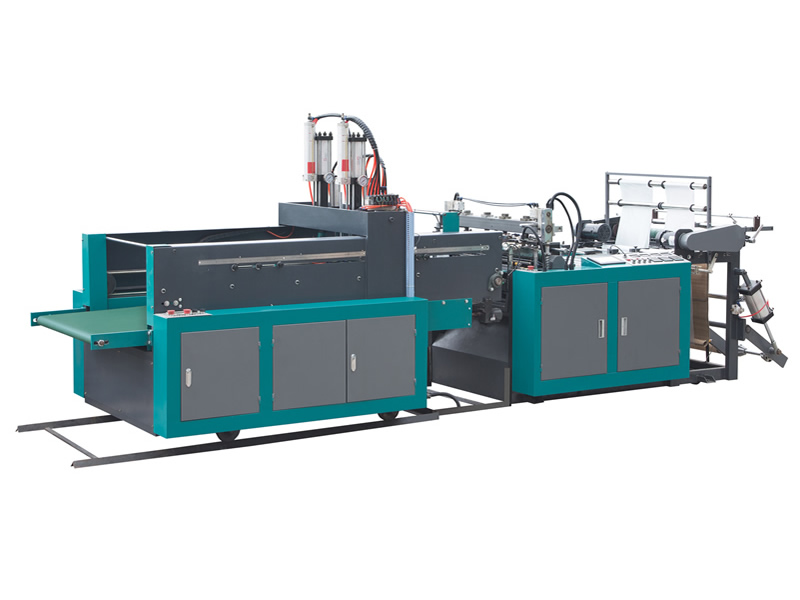

Automatic T-shirt Bag Making Machine (Double)

This machine has the Photoelectric automatic tracking microcomputer length setting, high limit downtime, automatic counting, countdown alarm, compensation of high precision, making bags, little error, the machine automation degree is high, is the production of White bag, color bag, flat bag, vest bags, and so on all kinds of plastic flexible packaging bags of ideal machine.

Inquire Now NEXT PRODUCT

Performance and Features

Fuselage structural design is streamlined.

No material, blocking bags automatically shut down.

Microcomputer control, stepper motor prop material (optional servo motor control system).

The temperature error is small, bag length can be adjusted freely.

Photoelectric tracking, stopping automatically when the label is lost.

Feeding, back cover, cutting, notching, conveying all in one time.

High degree of automation, good economic returns.

Use: This machine is suitable for the production of white bags, color bags, flat bags, vest bags, etc., all kinds of plastic soft packaging bags.

Main Technical Parameters

Model	FR-DF-400R（double）	FR-DF-500R（double）	FR-DF-600R（double）
Max. Width	350mm*2	450mm*2	530mm*2
Max. length	600mm	700mm	800mm
Photocell	2	2	2
Cutting Thickness	0.01-0.030 mm	0.01-0.030 mm	0.01-0.035 mm
Bag Output	5-180 Piece/minute*2	5-150 Piece/minute*2	5-150 Piece/minute*2
Main Power	1.5kw	2.2kw	3kw
Feeding Motor	370w*2	370w*2	370w*2
Power supply	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%
Weight	1700kg	1700kg	1800kg
Overall Dimensions	6500×1500×1800（mm）	6500×1600×1800（mm）	6500×1700×1800（mm）
