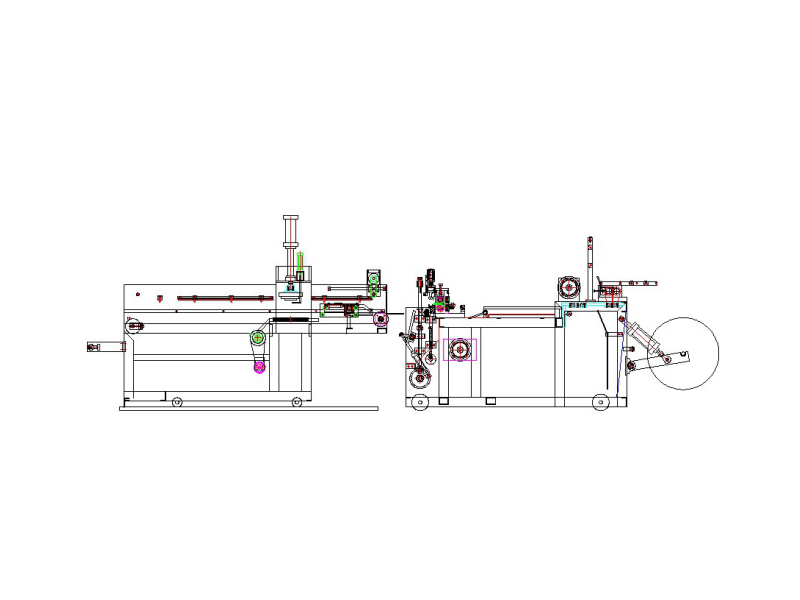

Automatic Whole Book Four-Line Bottom Sealing Bag Making Machine

This machine is specialized in producing printed t-shirt bags and flat bags, and can continuously automatically seal and cut various plastic film bags with or without printing into bags. The original is automatically copied, the cutting length is accurate, the error is small, and the speed is faster.

Inquire Now NEXT PRODUCT

Performance and Features

1. The body structure design is streamlined.

2. If there is no material, the machine will stop automatically when the bag is blocked.

3. Microcomputer control, stepper motor support (optional servo motor control system)

4. The temperature error is small, and the length of the bag can be adjusted by pressing the button.

5. Photoelectric tracking, automatic shutdown when the label is lost.

6. Feeding, sealing, cutting, punching and conveying can be completed at one time.

7. High degree of automation and good economic benefits.

Usage: This machine is suitable for printing T-shirt bags and flat bags

Main Technical Parameters

Model	FR-DFR-700C	FR-DFR-800C	FR-DFR-900C
Max. Width	1000mm	1200mm	1400mm
Max. length	600mm	600mm	600mm
Photocell	2	2	2
Cutting Thickness	0.01-0.20mm	0.01-0.20mm	0.01-0.20mm
Bag Output	5-100 Piece/minute*2	5-100 Piece/minute*2	5-100 Piece/minute*2
Main Power	1.5kw	1.5kw	1.5kw
Feeding Motor	300W*4	300W*4	300W*4
Power supply	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%
Weight	1500kg	1700kg	1800kg
Overall Dimensions	5000×1400×2000（mm）	5000×1500×2000（mm）	5000×1600×2000（mm）
