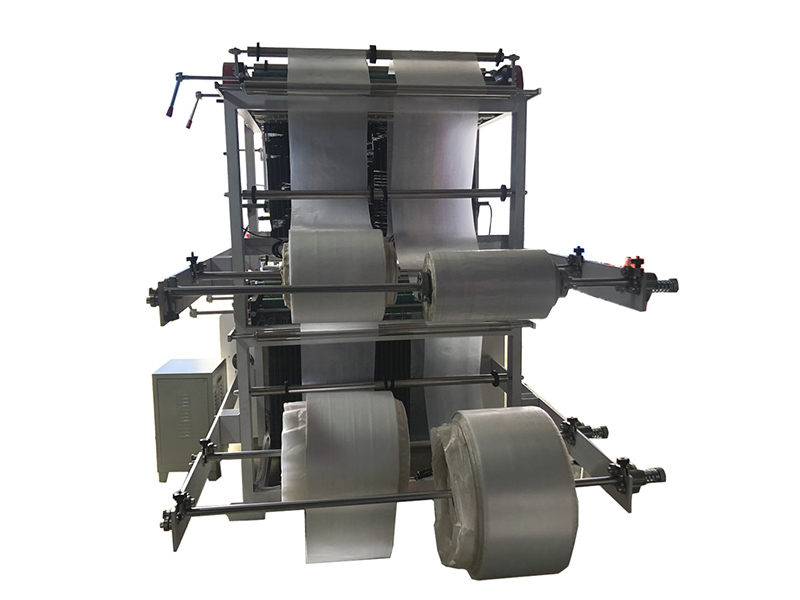

Double-layer Four-Line Bottom Sealing Bag Making Machine
Double-layer Four-Line Bottom Sealing Bag Making Machine

Double-layer Four-Line Bottom Sealing Bag Making Machine

Double-layer, Four-line, Bottom Sealing Bag-making Machine has such functions as photoelectric automatic tracking, microcomputer length setting, high limit stopping, automatic counting, automatic alarm on reaching the set value, and high compensation accuracy. With such characteristics as neat bags, little error, and high automation of the whole machine, it is an ideal equipment for producing blank bags, color bags, flat bags, vest bags, and other various plastic soft packaging bags.

Share:

Performance and Features

Fuselage structural design streamlined.

No material, blocking bags automatically shut down.

Microcomputer control, stepper motor prop material (optional servo motor control system)

The temperature error is small, bag length can be adjusted freely buttons.

Photoelectric tracking, stopping automatically when the label lost.

Feeding, back cover, cutting, notching, conveying one time.

High degree of automation, good economic returns.

Use:

This machine is suitable for white bag, color bag, flat bag, vest bag, etc


Main Technical Parameters

ModelFR-DFR-650FR-DFR-850FR-DFR-1000
Max. Width600mm800mm900mm
Max. length1000mm1000mm1000mm
Photocell222
Cutting Thickness0.009-0.10 mm0.009-0.10 mm0.009-0.10 mm
Bag Output5-120pcs/min*25-120pcs/min*25-120pcs/min*2
Main Power0.75kw1.5kw1.5kw
Feeding Motor


Power supply50HZ220V+10%-15%50HZ220V+10%-15%50HZ220V+10%-15%
Weight600kg800kg900kg
Overall Dimensions2800×1500×1600(mm)2800×1700×1600(mm)2800×1800×1600(mm)
