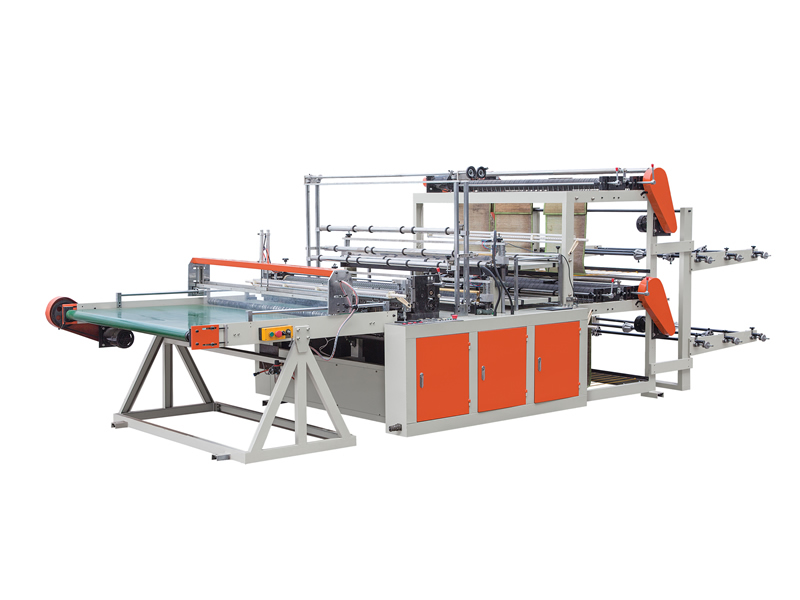

Double-layer Six-Line Bottom Sealing Bag Making Machine

Double-layer, Six-line, Bottom Sealing Bag-making Machine has such functions as photoelectric automatic tracking, microcomputer length setting, high limit stopping, automatic counting, automatic alarm on reaching the set value, and high compensation accuracy. With such characteristics as neat bags, little error, and high automation of the whole machine, it is an ideal equipment for producing blank bags, color bags, flat bags, vest bags, etc., and other various plastic soft packaging bags.

Inquire Now NEXT PRODUCT

Performance and Features

Fuselage structural design streamlined.

No material, blocking bags automatically shut down.

Microcomputer control, stepper motor prop material (optional servo motor control system)

The temperature error is small, bag length can be adjusted freely buttons.

Photoelectric tracking, stopping automatically when the label lost.

Feeding, back cover, cutting, notching, conveying one time.

High degree of automation, good economic returns.

Use:

This machine is suitable for white bag, color bag, flat bag, vest bag, etc

Main Technical Parameters

Model	FR-DF-800S	FR-DF-1000S	FR-DF-1200S	FR-DF-1500S
Max. length	140mm6 2104 500*2	270mm6 4004 900*2	330mm6 5004 1100*2	440mm6 6904 1400*2
Max. length	1000mm	1000mm	1200mm	1500mm
Photocell	1	1	1	1
Cutting Thickness	0.01-0. 05mm	0.01-0. 05mm	0.01-0. 05mm	0.01-0. 05mm
Bag Output	10-100pcs/min*2	10-100pcs/min*2	10-100pcs/min*2	10-100pcs/min*2
Main Power	1.5kw	1.5kw	2.2kw	3kw
Feeding Motor	300W*6	300W*6	300W4 4002	300W4 6002
Power supply	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%
Weight	900kg	1000kg	1100kg	1300kg
Overall Dimensions	4500×1500×1700（mm）	4500×1600×1800（mm）	4500×1800×1800（mm）	4500×2100×1800（mm）
