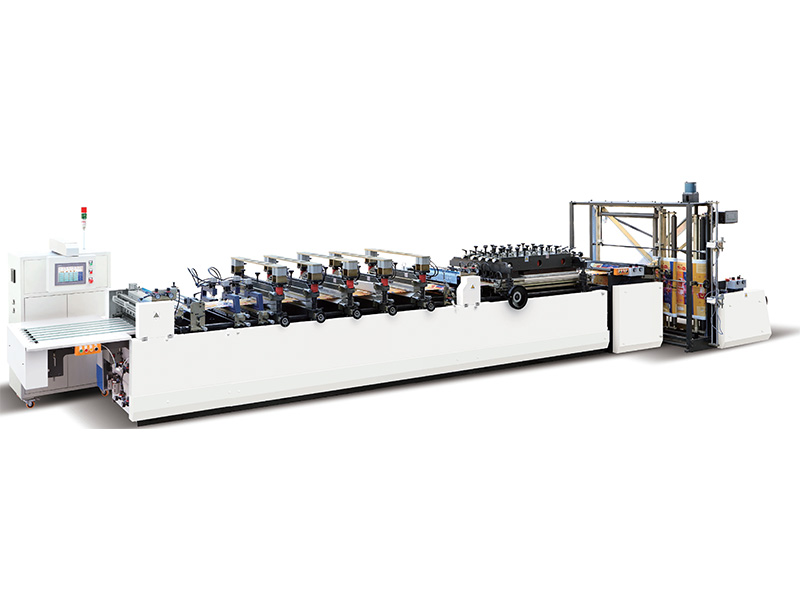

With such characteristics as reasonable structure, easy operation and high automatic, this machine is suitable for producing three side sealing pouch from various plastic-plastic, paper-plastic, paper-paper laminated material.
PERFORMANCE AND CHARACTERISTICS
1. Whole machine controlled by central PLC control system with man-machine. More stable performance, easy for operation and maintenance. Chinese and Engllsh Interface language can be shifted easily.
2. Constant auto-tension control for unwinding, LPC edge alignment, AC inverter constant speed auto material feeding.
3. Imported double servo-motor material dragging control system.
4. Main motor for up-down sealing and pressing equipped with inverter.
5. PID for sealing bar temperature adjustment, no touch auto control,centralized setting in man-machine interface.
6. Equipped with Pneumatic mult-function auto punching device, trim cuting and auto rewinding and static eliminator.
7. Temperature adjustment range: 0~300℃
8. Counter: quantity, batch acumulation, pre-set avalable.
9. Operation method: by length fixation control and/or by photocell tracking control.
10. Punching device: working rhythm can pre-set as continuous, interval or stop, punching time can be pre-set.
11. Material Skip Feeding: one to six times available.
12. Batch Conveying Function available, the quantity of batch can be preset.
Main Technical Variables
| Type | GX- ZUA400 | GX-ZUA600 |
| Max.Diameter o fRoll Materia | φ600 | φ600 |
| Max.Width of Roll Material | 850mm | 1250mm |
| Max. Speed | 160 part/min | 160part/min |
| Max. Mechanical Speed | 40m/min | 40m/min |
| Total Power | 35Kw | 45Kw |
| Weight of Machine | 4000kg | 5000kg |
| Overall Dimension | 9000×1800×1870mm | 9000×2000×1870mm |
