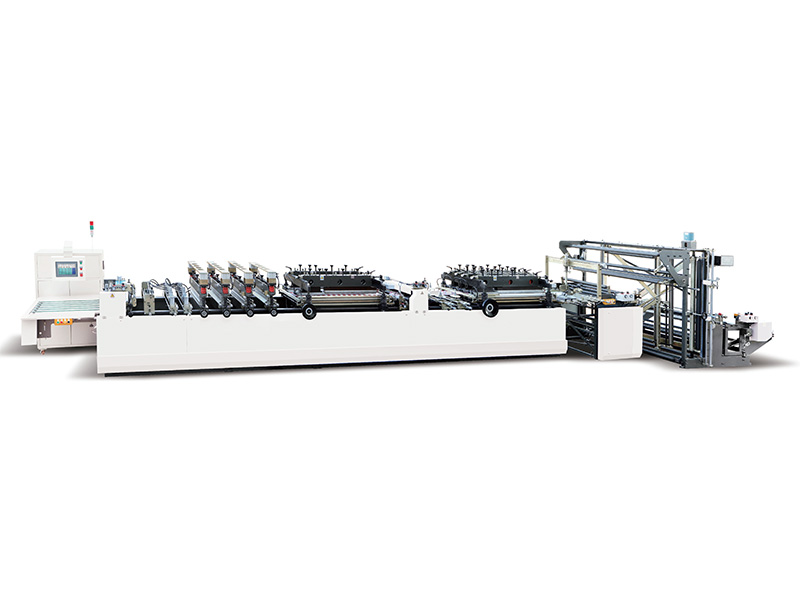

With such characteristics as reasonable structure,easy operation and high automation, this machine is suitable for producing pouch from various plastic-plastic, paper-plastic, paper-paper laminated materials and it is a kind of ideal Bag-making equipment for producing Middle sealing and three-side sealing bags.
PERFORMANCE AND CHARACTERISTICS
1. Whole machine controlled by central PLC control system with man-machine. More stable performance,easy for operation and maintenance. Chinese and English interface language can be shifted easily.
2. Constant auto-tension control for unwinding, LPC edge alignment, AC inverter constant speed auto material feeding.
3. Imported double servo-motor material dragging control system.
4. Main motor for up-down sealing and pressing equipped with inverter.
5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting In man-machlne Interface.
6. Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator.
7. Temperature adjustment range: 0~300℃.
8. Counter: quantity, batch accumulation, pre-set available.
9. Operation Method: by length fixation control and/or by photocell tracking control.
10. Punching device: working rhythm can pre-set as continuous, interval or stop, punching time can be pre-set.
11. Material Skip Feeding: one to six times available.
12. Batch Conveying Function available, the quantity of batch can be preset.
Main Technical Variables
| Type | GX-ZUB400 | GX-ZUB600 |
| Max. Diameter Of Roll Materia | φ600mm | φ600mm |
| Max. Width Of Roll Materia | 850mm | 1250mm |
| Max .Capacity | 150pieces/min | 150pieces/min |
| Max. Mechanical Speed | Approx.35m/min | Approx.35m/min |
| Total Power | 45Kw | 55Kw |
| Weight of Machine | 5000kg | 6000kg |
| Overall Dimensior | L10500×W1750×H1870mm | L10500×W1950xH1870mm |
