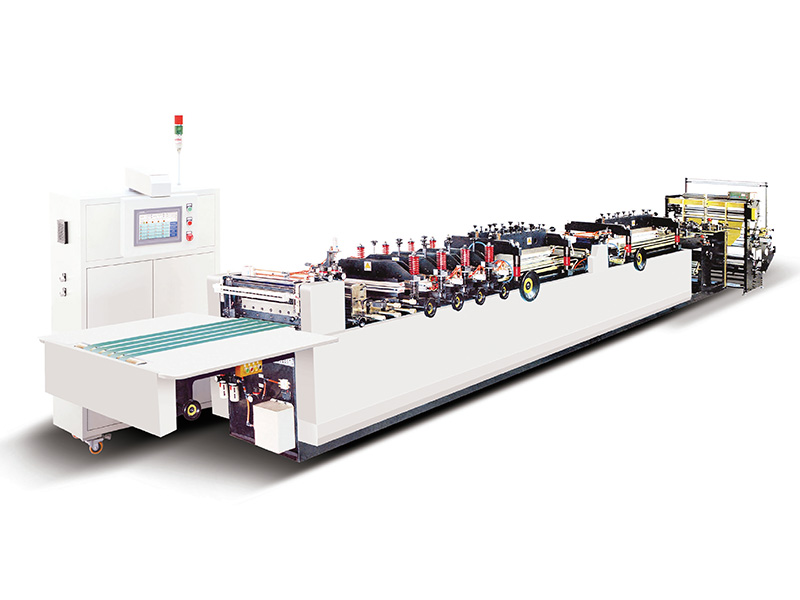

This machine suitable produce Middle sealing pouch,edge sealing pouch and four side sealing pouch from material different kinds of laminated film.
PERFORMANCE AND CHARACTERISTICS
1. Whole machine controlled by central PLC control system with man-machine. More stable performance, easy for operation and maintenance. Chinese and English Interface language can be shifted easily.
2. Constant auto-tension control for unwinding,LPC edge alignment, AC inverter constant speed auto material feeding.
3. Imported double servo-motor material dragging control system.
4. Main motor for up-down sealing and pressing equipped with inverter.
5. PID for sealing bar temperature adjustment,no touch auto control,centralized setting In man-machlne Interface.
6. Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator.
7. Temperature adjustment range: 0~300℃
8. Counter: quantity, batch accumulation, pre-set available.
9. Operation Method: by length fixation control and/or by photocell tracking control.
10. Punching device:working rhythm can pre-set as continuous, interval or stop, punching time can be pre-set.
11. Material Skip Feeding:one to six times available.
12. Batch Conveying Function available, the quantity of batch can be preset.
Main Technical Variables
| Type | GX-ZUC400 | GX-ZUC600 |
| Max.Diameter Of Roll Material | φ600mm | φ600mm |
| Max.Width Of Roll Material | 850mm | 1250mm |
| Max.Capacity | 150pieces/mm | 150pieces/mm |
| Max.Mechanical Speed | Approx.35m/min | Approx.35m/min |
| Max.Bag-making Width | 400mm | 600mm |
| Bag-making Length | 50-2400mm | 50-2400mm |
| Total Power | 25Kw | 35Kw |
| Weight Of Machine | 4500kg | 5500kg |
| Overall Dimension | L10550×W1700×H1830mm | L10550×W1900×H1830mm |
