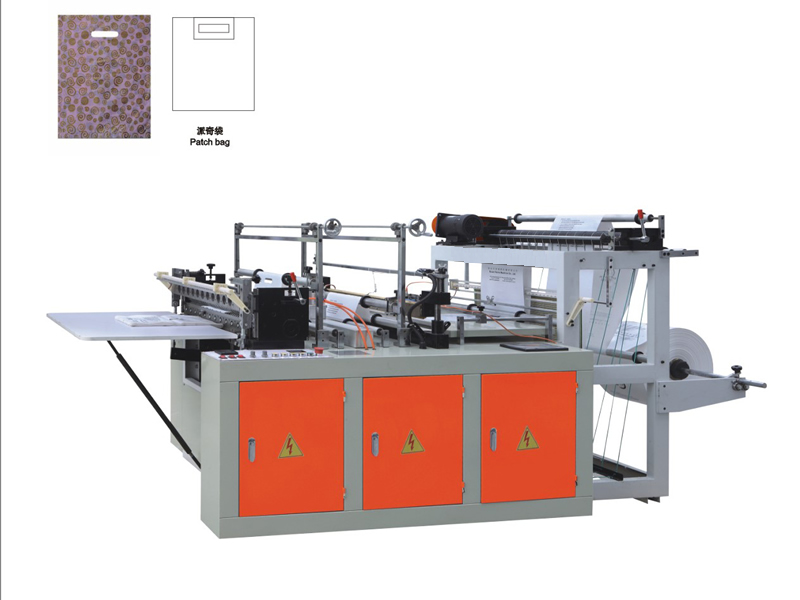

Paige Bag Making Machine

This machine is my company's latest development of new products, the machine specially used in the production of automatic punching bag. This machine is easy to operation, automatically control, the machine adopts microcomputer control, servo motor speed regulation, stable feeding, accurate positioning and high yield. It's the production of garment bags, shopping bags of ideal machine.

Inquire Now NEXT PRODUCT

Performance and Features

Fuselage structural design streamlined.

No material, blocking bags automatically shut down.

Microcomputer control, stepper motor prop material (optional servo motor control system)

The temperature error is small, bag length can be adjusted freely buttons.

Photoelectric tracking, stopping automatically when the label lost.

Feeding, back cover, cutting, notching, conveying one time.

High degree of automation, good economic returns.

Use:

This machine is suitable for garment bags, shopping bags etc.

Main Technical Parameters

Model	FR-DFR-900P	FR-DFR-1100P	FR-DFR-1300P	FR-DFR-1500P
Max. Width	1800mm	2000mm	2400mm	2800mm
Max. length (mm)	1500mm	1500mm	1500mm	1500mm
Photocell	2	2	2	2
Cutting Thickness	0.01-0.2mm	0.01-0.2mm	0.01-0.2mm	0.01-0.2mm
Bag Outpu	30-100pcs/min*2	30-100pcs/min*2	30-100pcs/min*2	30-100pcs/min*2
Main Power	1.5kw	2.2kw	2.2kw	2.2kw
Feeding Motor	500w	400w	600w	600w
Power supply	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%
Weight	900kg	1100kg	1200kg	1500kg
Overall Dimensions	2800×1900×1600（mm）	2800×2100×1600（mm）	2800×2300×1600（mm）	2800×2500×1600（mm）
