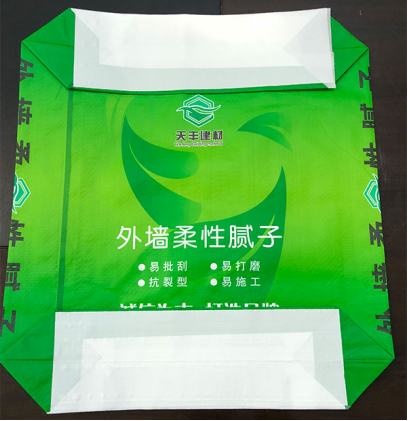

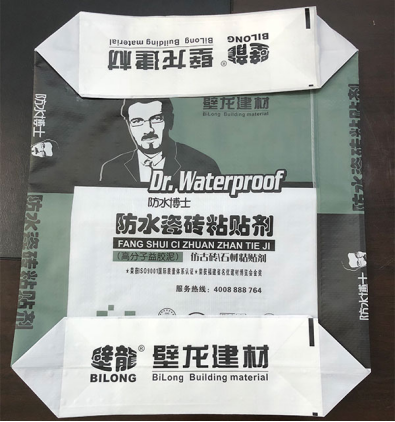

This machine adopts the new generation of hot air sealing technology to produce polypropylene film-coated plastic woven bags with square bottom valve or opening. Square bottom valve bags are the popular preferred bag type. They have the characteristics of high firmness, low cost, increased loading speed, easy to realize automatic filling of bags, good performance, improved bag production efficiency, improved stacking stability
This machine adopts the new generation of hot air sealing technology to produce polypropylene film-coated plastic woven bags with square bottom valve or opening. Square bottom valve bags are the popular preferred bag type. They have the characteristics of high firmness, low cost, increased loading speed, easy to realize automatic filling of bags, good performance, improved bag production efficiency, improved stacking stability
Technical Data
| Model | TY-10001 |
| Bag width | 350 - 600mm |
| Bag length | 400 - 910mm |
| Bottom width * | 80 - 160mm |
| Valve length | 80 - 200mm |
| Max. production speed * | 80-120pcs/min |
| Max. dia. of unwinding | 1200mm |
| Power supply | 380V / 3P / 50Hz / A.C. |
| Installed power | 85kw |
| Overall dimension (L×W×H) | 10240×8130×2500mm |

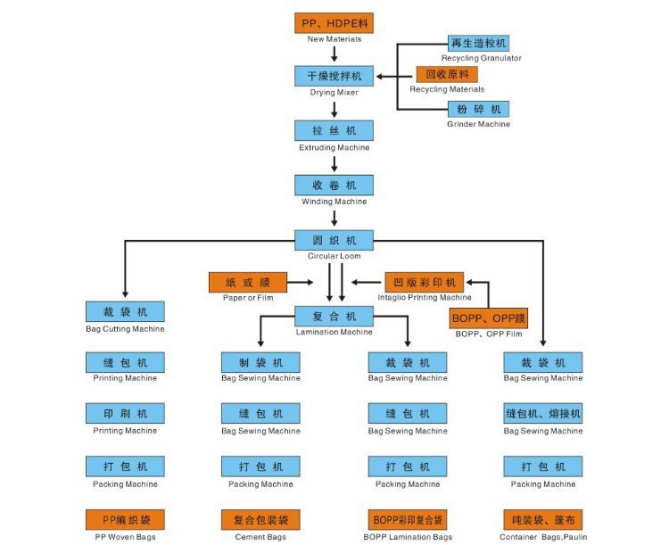

Woven bag production process
