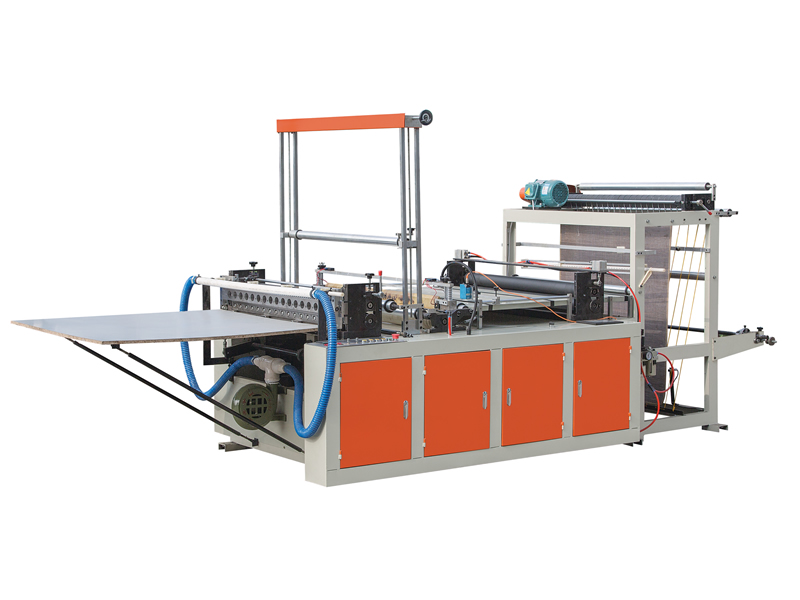

Single Layer Auxiliary Feeding Bottom Sealing Bag Making Machine

This machine adopts an imported servo motor control system, followed up by sensor length fixing, ensuring accurate and stable operation. It is suitable for plastic films like LDPE, HDPE, LLDPE, etc., especially for lengthened and widened products. Labor is saved, and efficiency is high.

Inquire Now NEXT PRODUCT

Performance and Features

Fuselage structural design streamlined.

No material, blocking bags automatically shut down.

Microcomputer control, stepper motor prop material (optional servo motor control system)

The temperature error is small, bag length can be adjusted freely buttons.

Photoelectric tracking, stopping automatically when the label lost.

Feeding, back cover, cutting, notching, conveying one time.

High degree of automation, good economic returns.

Use:

This machine is suitable for LDPE、HDPE、LLDPE Plastic film etc.

Main Technical Parameters

Model	FR-DF-650D	FR-DF-800D	FR-DF-900D	FR-DF-1000D	FR-DF-1100D
Max. Width	580mm	700mm	800mm	900mm	1000mm
Max. length	1200mm	1500mm	1500mm	1500mm	1500mm
Photocell	1	1	1	1	1
Cutting Thickness	0.02-0.30 mm	0.02-0.30 mm	0.02-0.30 mm	0.02-0.30 mm	0.02-0.30 mm
Bag Output	5-100*2	5-100*2	5-100*2	5-100*2	5-100*2
Main Power	1.5kw	1.5kw	1.5kw	1.5kw	1.5kw
Feeding Motor	300w	300w	300w	300w	300w
Power supply	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%
Weight	800kg	800kg	850kg	900kg	950kg
Overall Dimensions	3000×1200×1700（mm）	3000×1400×1700（mm）	3000×1700×1800（mm）	3000×1600×1800（mm）	3000×1700×1800（mm）
