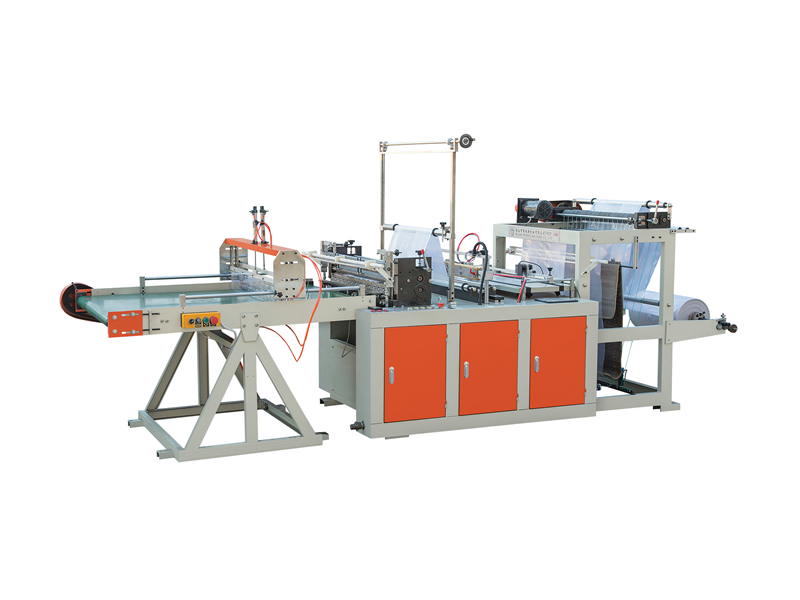

Single Layer Standard Bottom Sealing Bag Making Machine

This machine adopts photoelectric color scale feeding, photoelectric detection, automatic sealing and cutting position. The main motor adopts frequency conversion control, designed the upper stop set, keyboard, electronic counter, bag length can seal and cut step motor controlled by computer, equipped with electrostatic eliminator. With convenient operation, firm sealing and cutting smooth and stable work, high speed, high degree of automation. Available according to customer needs, at the same time production of 2, 4, 6 bags. It’s the production of white bag, color bag, flat bag, vest bag, all kinds of plastic flexible packaging bags of ideal machine.

Inquire Now NEXT PRODUCT

Performance and Features

Fuselage structural design streamlined.

No material, blocking bags automatically shut down.

Microcomputer control, stepper motor prop material (optional servo motor control system)

The temperature error is small, bag length can be adjusted freely buttons.

Photoelectric tracking, stopping automatically when the label lost.

Feeding, back cover, cutting, notching, conveying one time.

High degree of automation, good economic returns.

Use:

This machine is suitable for production of White bag, color bag, flat bag, vest bags, etc all kinds of plastic soft packing bags

Main Technical Parameters

Model	FR-DF-650	FR-DF-800	FR-DF-900	FR-DF-1000	FR-DF-1100	FR-DF-1200	FR-DF-1500
Max. Width	580mm	700mm	800mm	900mm	1000mm	1100mm	1400mm
Max. length	1500mm	1500mm	1500mm	1500mm	1500mm	1700mm	1800mm
Photocell	1	1	1	1	1	1	1
Cutting Thickness	0.01-0.20mm	0.01-0.20mm	0.01-0.20mm	0.01-0.20mm	0.01-0.20 mm	0.01-0.20 mm	0.01-0.20 mm
Bag Output	10-180pcs/min*2	10-180pcs/min*2	10-180pcs/min*2	10-150pcs/min*2	10-150pcs/min*2	10-150pcs/min*2	10-120pcs/min*2
Main Power	1.5kw	1.5kw	1.5kw	1.5kw	1.5kw	1.5kw	1.5kw
Feeding Motor	300w	300w	300w	300w	300w	400w	600w
Power supply	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%
Weight	500kg	600kg	700kg	700kg	800kg	850kg	900kg
Overall Dimensions	3000×1200×1700（mm）	3000×1400×1700（mm）	3000×1500×1700（mm）	3000×1600×1700（mm）	3000×1700×1700（mm）	3000×1800×1700（mm）	3000×2100×1800（mm）
