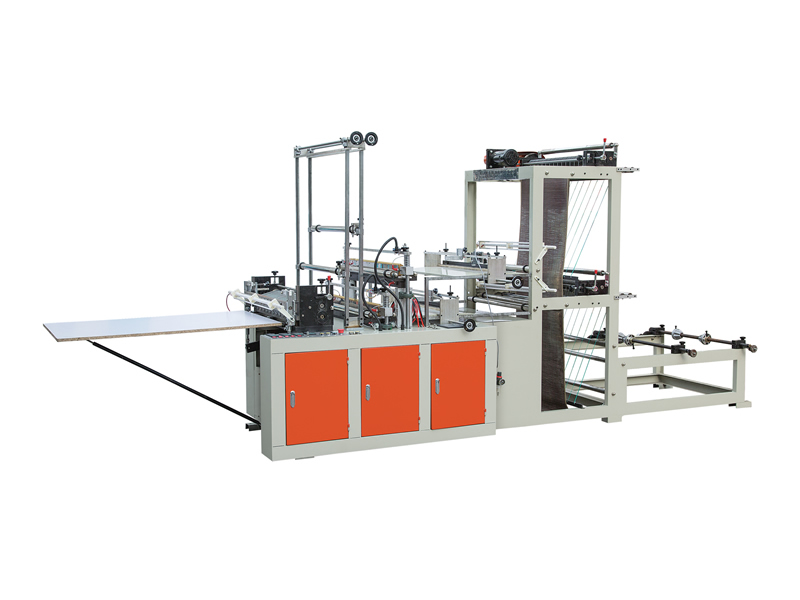

Up and Down Double Bottom Sealing Bag Making Machine

This machine has photoelectric automatic tracking, microcomputer length setting, high limit downtime, automatic counting, countdown alarm, compensation of high precision, make neat bags, little error, high degree of automation, is the production of white bag, color bag, flat bag, vest bag, all kinds of plastic flexible packaging bags of ideal machine.

Inquire Now NEXT PRODUCT

Performance and Features

Fuselage structural design streamlined.

No material, blocking bags automatically shut down.

Microcomputer control, stepper motor prop material (optional servo motor control system)

The temperature error is small, bag length can be adjusted freely buttons.

Photoelectric tracking, stopping automatically when the label lost.

Feeding, back cover, cutting, notching, conveying one time.

High degree of automation, good economic returns.

Use:

This machine is suitable for production of white bag, color bag, flat bag, vest bags, etc all kinds of plastic soft packing bags.

Main Technical Parameters

Model	FR-DFR-650A	FR-DFR-800A	FR-DFR-900A	FR-DFR-1000A
Max. Width	580mm	700mm	800mm	900mm
Max. length	1500mm	1500mm	1500mm	1500mm
Photocell	1	1	1	1
Cutting Thickness	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm
Bag Output	5-120pcs/min*2	5-120pcs/min*2	5-120pcs/min*2	5-120pcs/min*2
Main Power	1.5kw	1.5kw	1.5kw	1.5kw
Feeding Motor	300w*2	300w*2	300w*2	300w*2
Power supply	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%	50HZ220V+10%-15%
Weight	600kg	650kg	750kg	750kg
Overall Dimensions	3500×1200×1800（mm）	3500×1400×1800（mm）	3500×1500×1800（mm）	3500×1600×1800（mm）
